- Single line
- Soft menu key
- Speakerphone in Handset
- User friendly mmi
- Key Guard

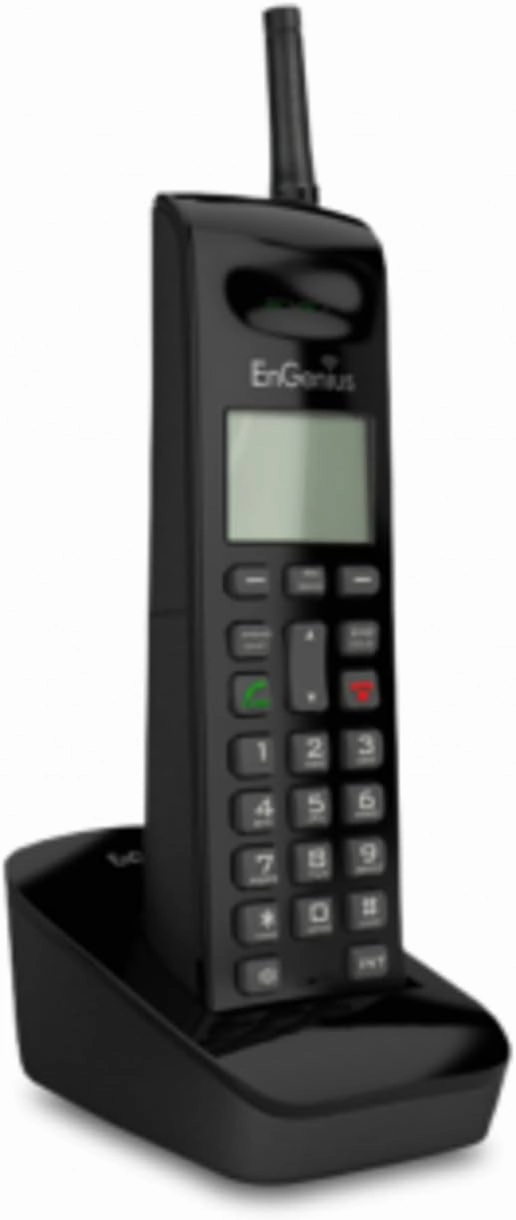

Extreme Range Scalable Cordless Phone System
The FreeStyl 2 handset was designed to provide long range premises wireless communication for the less demanding office and residential environment. With powerful technology that extend coverage to 6 floor, 25,000 square feet of in-building space. The FreeStyl 2 handset can be added to existing FreeStyl 2 system. Each system can accommodate up to 9 handsets.
Running on 900 MHz frequency, the FreeStyl2 handset provides a clear and vastly extended range connection to the FreeStyl 2 base station. The handset provide business features such as call on hold with built-in music, call manager and transmit power control. While running on intercom mode, FreeStyl 2 handset works as 2-way communication device between two handsets which operate independent of the base station.
Key Features
- 1-Line Phone System
- Supports up to 9 simultaneous handsets (sold separately)
- Extreme wireless range up to: 6 floors, 25,000 sq. ft. in warehouses, and 10 acres in open areas
- Speakerphone in handset
- 2-Way intercom
- Broadcast to multiple handsets from any handset
FreeStyl 2 system works well with:
• Phone book: 50 entries
• Soft menu key
• Speakerphone in handset
• Broadcast (independent with base)
• Intercom (independent with base)
• User friendly MMI
• Key guard
• Transmit power control
• Adjustable microphone gain
• Handset group setting
• Type I/II caller ID
• DTMF/FSK Caller ID
• Message waiting detection (VMWI)
• Call on hold
• Build-in music on hold
• Rapid charging
• Mute
• Baby monitor
• Call manager (Call barring for incoming/outgoing call)
• Any key answer
• Feature call: 10
• Adjustable flash time
• Wall mountable
• Earphone call control
• 2.5mm headset jack
• Ringer/ vibrator
FreeStyl 1
FreeStyl 2
Model No. Description Digital 1-Line Long Range
Cordless Telephone Digital 1-Line Long Range
Cordless Telephone Range - In Building Up to 6 floors Up to 6 floors Warehouse Up to 25,000 sq. ft. Up to 25,000 sq. ft. Open Area Up to 10 acres Up to 10 acres Antenna - Base RT-TNC Dipole RT-TNC Dipole Handset Low Profile Low Profile Auto Attendant No No Base Dialing Yes No Battery - mAH (milliAmp Hours) 1100 1100 Standby Time 60 hours 60 hours Talk Time 5.5 hours 5.5 hours Charge Time 3 hours 3 hours Broadcast - Base Yes No Handset Yes Yes Caller ID Yes Yes Compatible with FreeStyl 2 FreeStyl 1 Expandibility of Handsets Up to 9 Up to 9 Frequency 900 MHz 900 MHz Frequency Hopping Yes Yes Headset Jack 2.5mm 2.5mm Intercom - Base Yes No Handset Yes Yes Phonebook entries Up to 50 Up to 50 Ports RJ-11 RJ-11 Lines 1 1 Tel 1 1 Voicemail No No Handset charging cradles and batteries are not interchangeable between FreeStyl 1 and 2 models. Actual range can vary depending on many factors including environmental conditions, distance between devices, and radio interference in the operating environment. Features and specifications subject to change without notice.
Features and Functionality
- Single Line
- Operation Frequency: 902~928MHz (option for 902~915MHz & 915~928MHz)
- Up to 400mW/-111dBm transmit power
- Phone book: 50 entries
- Soft menu key
- Speakerphone in handset
- Broadcast (independent with base)
- Intercom (independent with base)
- User friendly MMI
- Key guard
- Transmit power control
- Adjustable microphone gain
- Handset group setting
- Type I/II caller ID
- DTMF/FSK Caller ID
- Message waiting detection (VMWI)
- 4-line LCD display
- Call on hold
- Build-in music on hold
- Rapid charging
- Mute
- Baby monitor
- Call manager (Call barring for incoming/outgoing call)
- Any key answer
- Feature call: 10
- Adjustable flash time
- Wall mountable
- Supports Up to 9 Handsets
- Earphone call control
- 2.5mm headset jack
- Ringer/ vibrator
What's in the Box
FreeStyl 2 Handset, 5VDC/1A AC100~240V power adapter, battery pack, desktop charger, quick installation guide.
Weights & Dimensions
Net weight : 156g (including battery);Handset dimension : 194.05x46.59x33.35mm
Weight: 0.34 Ibs.
Width: 1.83"
Length: 7.64"
Height: 1.31"
