- SPECIFICATIONS || * Brand : CELESTION || * Model Number : T4533 || * Nominal diameter : 305mm / 12in || * Power rating : 30W || * Rated impedance : 8Ω || * Sensitivity : 100dB || * Chassis type : Pressed steel ||
- SPECIFICATIONS || * Magnet type : Ceramic || * Magnet weight : 1.42kg / 50oz || * Voice coil diameter : 1.75in / 44mm || * Voice coil material : Round copper || * Frequency range : 75-5000Hz || * Resonance frequency, Fs : 85Hz || * DC resistance, Re : 6.9Ω or 11.8Ω ||
- MOUNTING INFORMATION || * Cut-out diameter : 283mm / 11.1in || * Diameter : 309mm / 12.2in || * Magnet structure diameter : 156mm / 6.1in || * Mounting hole dimensions : 7.9mm / 0.31in Ø || * Mounting hole PCD : 297mm / 11.7in || * Number of mounting holes : 4 || * Chassis depth (inc gasket) : 97mm / 3.79in || * Magnet depth : 38mm / 1.51in || * Overall depth : 135mm / 5.3in || * Unit weight : 4.7kg / 10.4lb ||
- Originally re-released to celebrate our 70th Anniversary, the G12H guitar speaker remains hugely popular with players looking to recreate the classic sounds of 60s and 70s rock. With a strong aggressive low-end and powerful low-mids the G12H penetrates any mix with an attacking upper mid-range and an ice-cool top- end. ||
- Used singly or in quartets it provides serious attitude to soft amp tones easily cutting through loud stage levels for chord work and imparting a hard edge to single notes. A favourite in the ’boutique’ amplifier market the G12H guitar speaker is often used on its own or paired with a Celestion Blue or Gold for a full-bodied sound that adds ceramic attitude to the chime of an Alnico speaker.

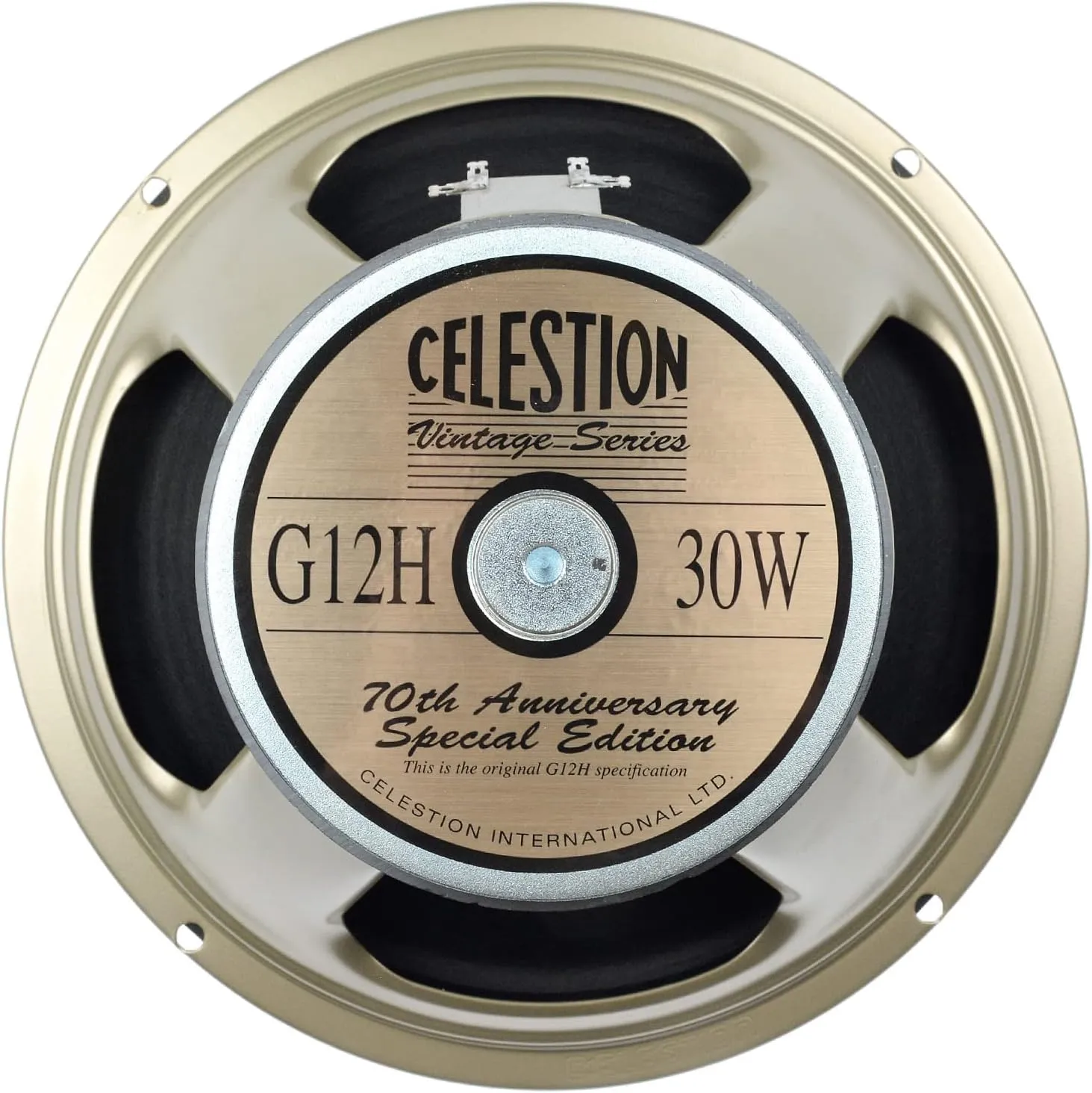

CELESTION T4533 30W 12" G12H ANNIVERSARY
